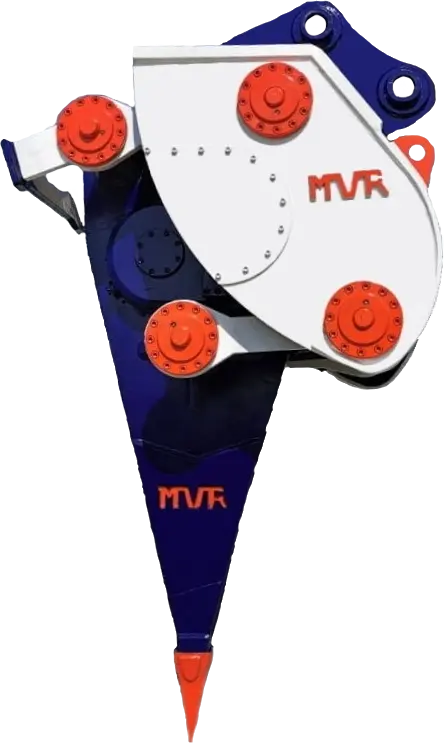

Vibro Ripper

Manufactured by Almaahad Engineering for the first time in the Middle East.

MVR Vibro Ripper is an excavator attachment developed for high performance rock excavation and concrete demolition work.

HIGH PRODUCTIVITY

MVR Vibro Ripper has been designed to increase productivity and efficiency in 80% of applications up to 5 times more than Hydraulic Breakers.

Low noise output.
Minimum maintenance.
Easy replacement tooth.
Economical and safety work.
No daily lubrication required.
Marine/underwater operation.
Higher productivity than Hydraulic Breaker.
More precision for separation of rock layers.
Powerful digging force by special link Structure.
With additional option devices, the ripper can be used as compactor or pile-driving hammer.

Productivity Comparison Chart

Fresh diabase & Hard Sandstone

Fresh Basalt & Augitic diorite

Feldspathic Snadstone grante, Gaboro

Limestone / Andesite, Clay slate

These Vibro Ripper are suitable for excavators from 12 to 180 tons.

MVR 20

MVR 30

MVR 40

MVR 50

MVR 60

MVR 80

MVR 100

MVR 150

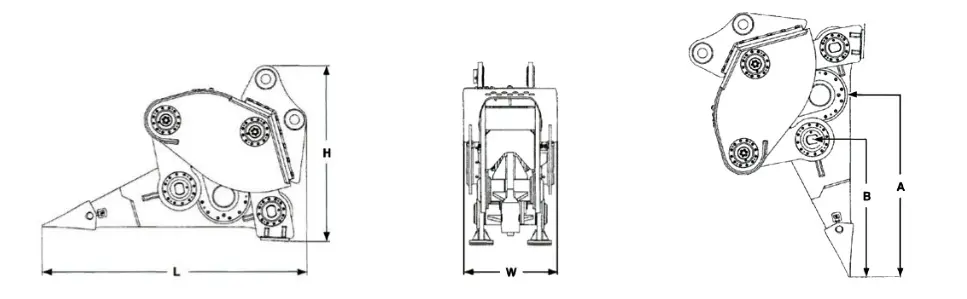

Model		MVR 20	MVR 30	MVR 40	MVR 50	MVR 60	MVR 80	MVR 100	MVR 150
Excavator Weight	Tons	12-20	20-35	35-50	40-60	55-70	70-90	90-120	100-180
Operation Weight	Kg	2,400	3,600	5,000	6,000	7,000	8,200	10,000	13,700
Length (Including Bracket)	MM	2,400	2,800	3,200	3,400	3,600	3,800	4,000	4,300
Width	MM	750	1,000	1,300	1,350	1,370	1,400	1,450	1,500
Working Area	MM	1,250	1,550	1,660	1,770	1,900	2,000	2,200	2,400
Frequency	1/min	1,400	1,400	1,300	1,200	1,100	1,000	1,000	1,000
Hydraulic Working Pressure	Mpa	17-20	21-23	22-24	22-24	26-28	26-28	30-32	32-34
Hydraulic Oil Fallow	L/min	120-140	160-200	180-220	200-240	260-300	320-360	400-460	500-550
Case Drain Max Pressure	MPA	0.4	0.4	0.5	0.4	0.4	0.4	0.4	0.5
Accumulator Pressure	Mpa	0.5	0.5	0.5	0.4	0.1	0.6	0.6	0.8
